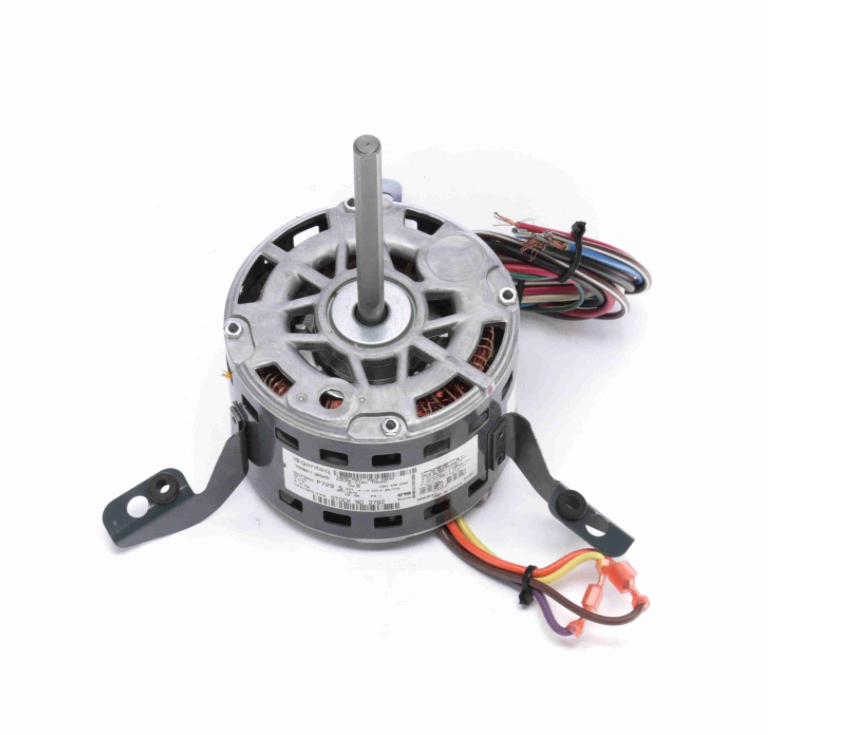

GE 3782 - 5KCP39DGP729S 1/6 HP
Direct Drive Fan and Blower Motor
5.6" Diameter - 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2" Diameter Shaft with Flat
26" Leads
Torsion Flex Lug Mounting
UPC:
815585020684
Weight:
11.00 LB
Packaged Length:
14.12 IN
Packaged Width:
10.88 IN
Packaged Height:

9.94 IN

Output HP:
1/6 Hp
Output KW:
0.13 kW
Frequency:
60 Hz
Voltage:
115 V
Current:
2.50 A
Speed:
1075 rpm
Service Factor:
1
Phase:
1
Duty:
Continuous Air Over
Insulation Class:
B
Frame:
48
Enclosure:
Open Air Over
Thermal Protection:
Thermally Protected
Ambient Temperature:
40 °C
UL:
Recognized
CSA:
Y
CE:
N
Number of Speeds:
3


Electrical Type:Permanent Split CapacitorPoles:6Rotation:ReversibleMounting:LugMotor Orientation:AnyDrive End Bearing:SleeveOpp Drive End Bearing:SleeveFrame Material:Rolled SteelShaft Type:FlatOverall Length:9.03 inFrame Length:3.32 inShaft Diameter:0.500 inShaft Extension:5.00 in
